Semaphores, Lock Implementation, Atomic Instructions

Semaphores

• Semaphores are a kind of generalized lock
  • First defined by Dijkstra in late 60s
  • Main synchronization primitive used in original UNIX
• Definition: a Semaphore has a non-negative integer value and supports the following operations:
  • Set value when you initialize
  • Down() or P(): an atomic operation that waits for semaphore to become positive, then decrements it by 1
    • Think of this as the wait() operation
• Up() or V(): an atomic operation that increments the semaphore by 1, waking up a waiting P, if any
  • This of this as the signal() operation
• Semaphores are like integers, except
  • No negative values
  • Only operations allowed are P and V – can’t read or write value, except initially
• Operations must be atomic
  • Two P’s together can’t decrement value below zero
  • Thread going to sleep in P won’t miss wake up from V – even if both happen at same time
• POSIX adds ability to read value, but technically not part of proper interface!

Two Uses of Semaphores

• Mutual Exclusion (initial value = 1)
  • Also called “Binary Semaphore” or “mutex”.
  • Can be used for mutual exclusion, just like a lock:

    semaP(&mysem);
    // Critical section goes here
    semaV(&mysem);


• Scheduling Constraints(initial value = 0)
  • Allow thread 1 to wait for a signal from thread 2
    • thread 2 waits for thread 1 to finish

      // thread1
      ThreadJoin {
          semaP(&mysem); //wait
       }

      // thread2
      ThreadFinish {
          semaV(&mysem); // signal
      }

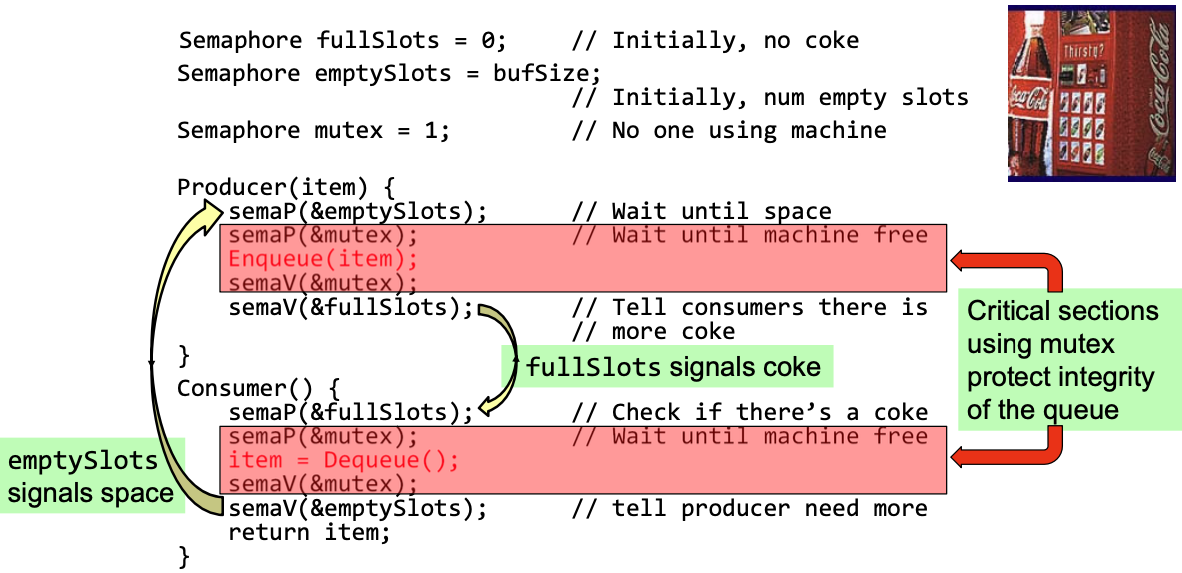

Revisit Bounded Buffer: Correctness constraints for solution

• Correctness Constraints:
  • Consumer must wait for producer to fill buffers, if none full (scheduling constraint)
  • Producer must wait for consumer to empty buffers, if all full (scheduling constraint)
  • Only one thread can manipulate buffer queue at a time (mutual exclusion)
• Remember why we need mutual exclusion
  • Because computers are stupid
  • Imagine if in real life: the delivery person is filling the machine and somebody comes up and tries to stick their money into the machine
• General rule of thumb: Use a separate semaphore for each constraint
  • Semaphore fullBuffers; // consumer’s constraint
  • Semaphore emptyBuffers;// producer’s constraint
  • Semaphore mutex; // mutual exclusion

• Why asymmetry?
  • Producer does: semaP(&emptyBuffer), semaV(&fullBuffer)
  • Consumer does: semaP(&fullBuffer), semaV(&emptyBuffer)
